  • RDR-70U1AKU Wave ID® Nano Keystroke 13.56MHz w/iCLASS SE & Seos Black Vertical USB-C Reader
  • RDR-70U1AKU Wave ID® Nano Keystroke 13.56MHz w/iCLASS SE & Seos Black Vertical USB-C Reader

RDR-70U1AKU Wave ID® Nano Keystroke 13.56MHz w/iCLASS SE & Seos Black Vertical USB-C Reader

Article number: RDR-75U1AKU
€213,40
Excl. tax

The WAVE ID Nano USB-C reader incorporates all the features of the desktop readers into an ultra-compact and highly resistant USB form factor.

The rating of this product is 0 out of 5

(0)
In stock

The WAVE ID Nano USB-C reader incorporates all the features of the desktop readers into an ultra-compact and highly resistant USB form factor. Because the
reader is designed to meet punishing military-grade specifications, it’s the ideal choice for user authentication and access in challenging environments and applications where security is critical.

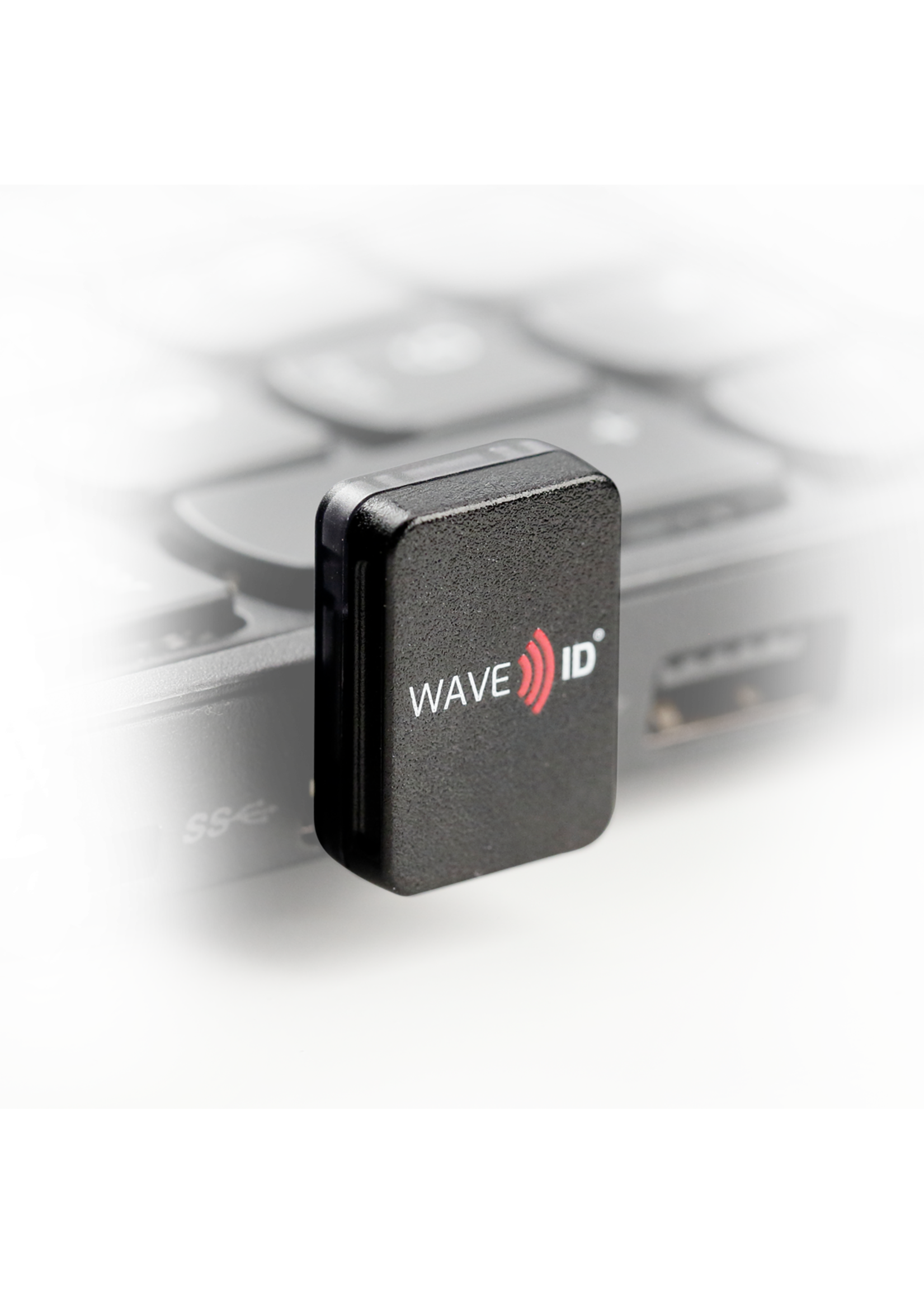

Like all rf IDEAS® readers, the WAVE ID Nano USB-C reader inserted in a laptop or tablet helps technology- driven organizations protect critical data and information while giving authorized users mobility and peace of mind. Its ultra-compact size makes it easy for mobile workers— including first responders or military professionals—to do their jobs while complying with organizational guidelines for authentication, identification and access.

Highly Resistant

To comply with select MIL-STD-810 requirements that address “hostile environment” usage, the WAVE ID Nano USB-C reader features an over-molded design that is built to resist:

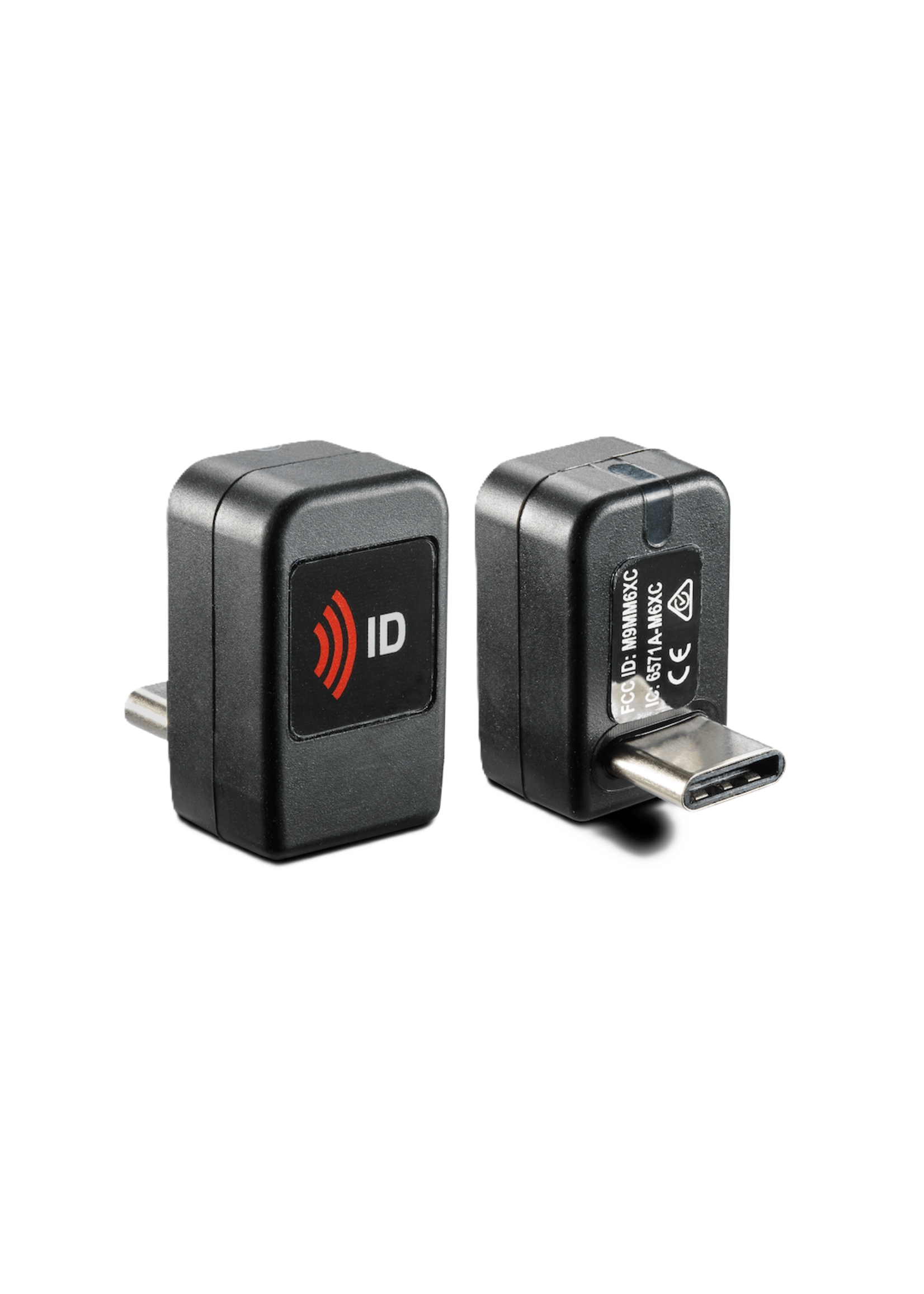

13.56 MHz Contactless Vertical (left) and 125 kHz Proximity Vertical (right)

Feature-Rich Small Reader Profile

The reader’s unsurpassed ruggedness and revolutionary small size offer flexibility in a wide variety of mission- critical integrations. The small form factor is not intrusive to the laptop user and avoids breakage costs common with larger dongle-style readers. This ultra-compact reader minimizes the required hardware components when embedded within housings or keyboards, for example, in IT applications where access control is required. The WAVE ID Nano USB-C reader

with its Type-C USB connector is designed for this growing industry requirement.

Compatibility with Existing Badge Systems

The WAVE ID Nano USB-C reader easily integrates into existing 125 kHz proximity or 13.56 MHz contactless smart card systems and is compatible with most credential types worldwide.







Common Applications

Credential-based reader solutions help streamline workflow and avoid identification errors by eliminating the need to manually enter usernames and passwords. Here are some of
the most common applications in
key industries.







RDR-6xUxAKU (125 kHz)
RDR-7xUxAKU (13.56 Mhz)

125 kHz or 132 kHz USB
Yes

Height 0.83'' (21.1mm) x Width 0.41'' (10.5mm) x Length 0.51" (13.0mm) (not including the USB-C connector) 0.14 ounces (4g)
Black
Not applicable
Not applicable
LED
Vertical
USB self-powered

-22o to 150oF (-30o to 65oC) for non-SEOS models only; 32o to 150oF (0o to 65oC) for SEOS models 5% to 95% relative humidity, non-condensing
-40o to 185oF (-40o to 85oC)

FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL Environmental: RoHS, REACH

Windows XP®, 7®, 8®, 10® and Linux (Ubuntu, Red Hat), macOS and Android Visit



Product Brochure

https://cdn.webshopapp.com/shops/25475/files/391904780/wave-id-nano-usb-c-pa-124.pdf

https://cdn.webshopapp.com/shops/25475/files/398400122/wave-id-nano-usb-c-use-case-uc-606.pdf
