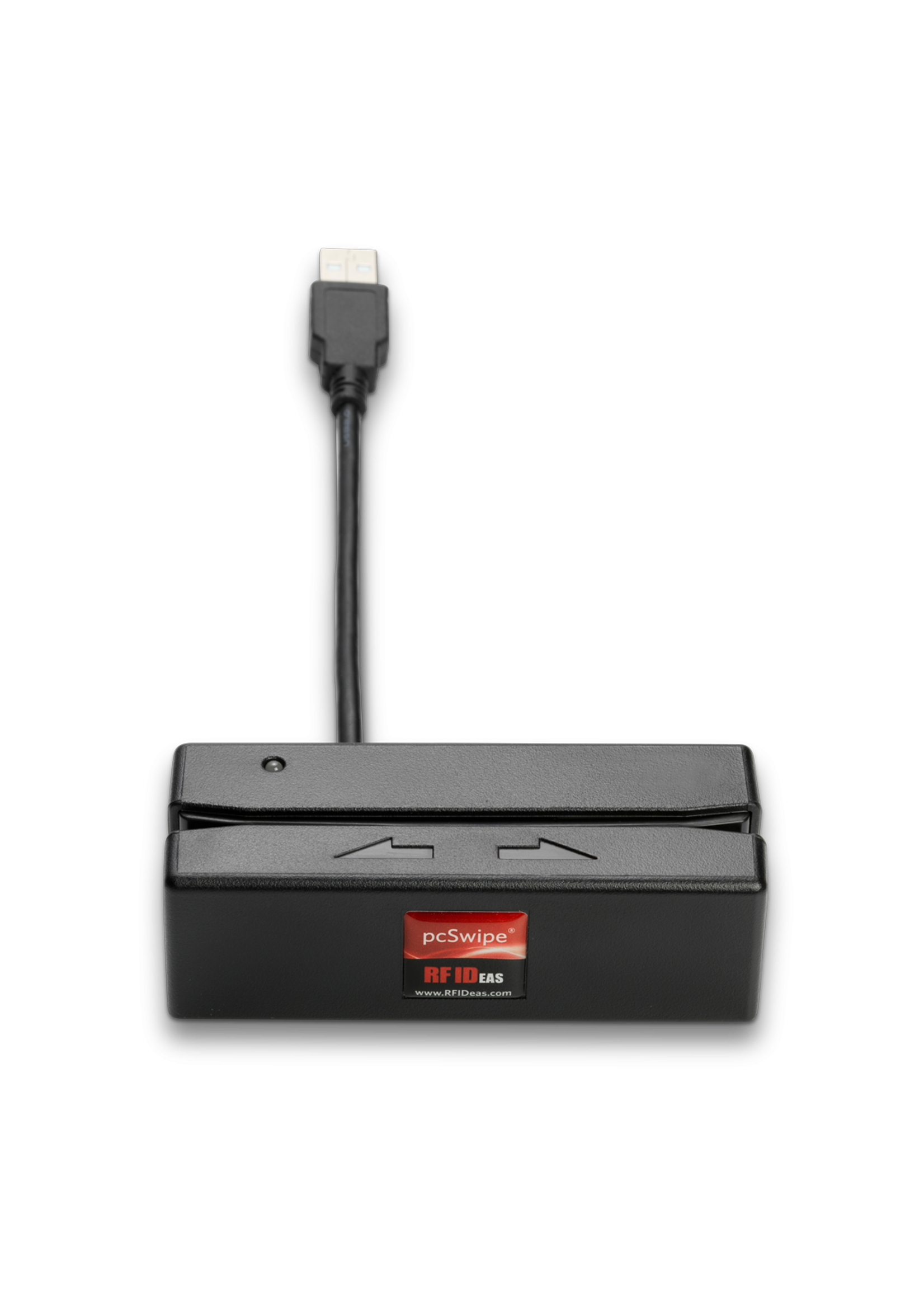

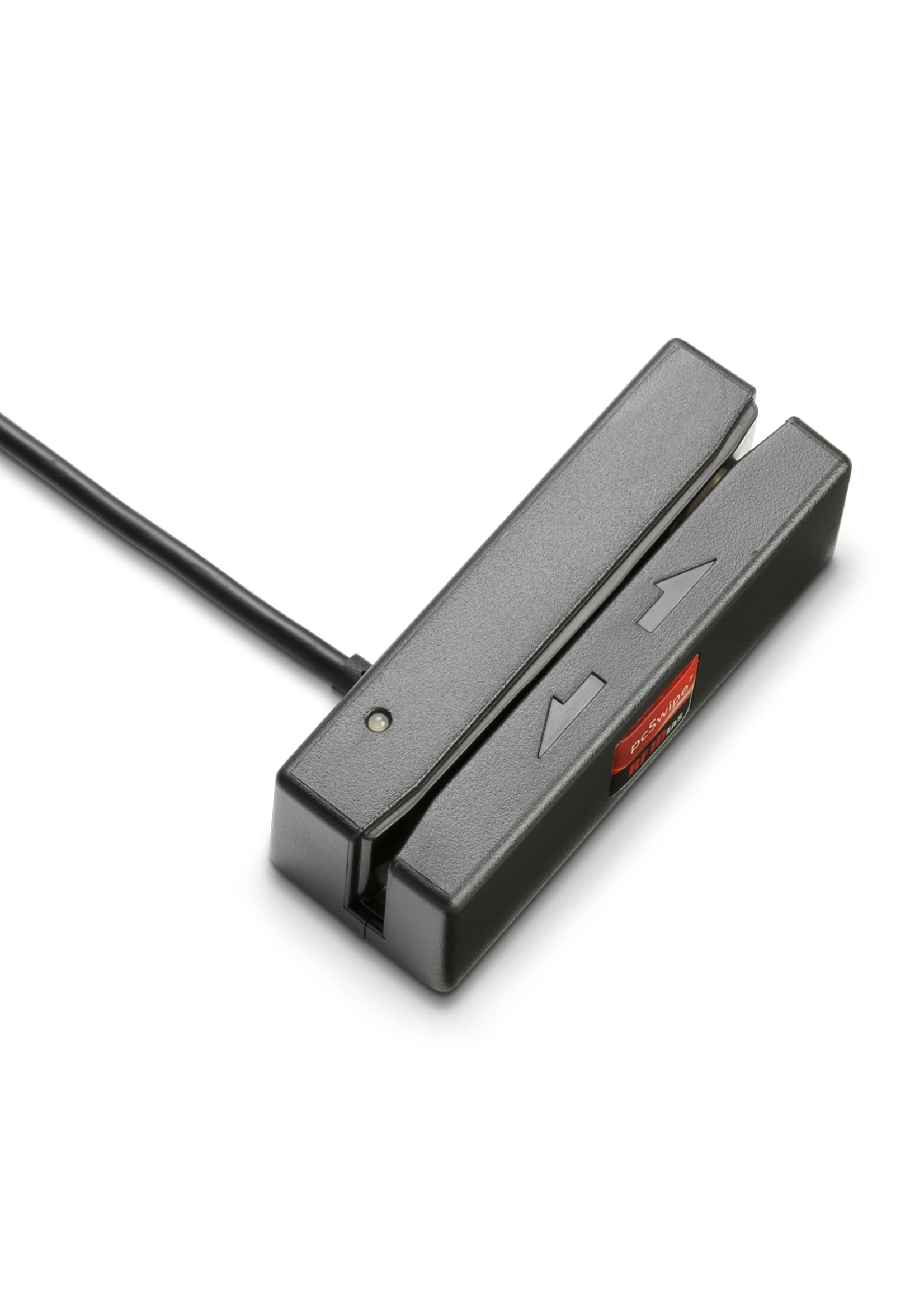

KT-MS3-001AKU4 pcSwipe Magnetic Stripe 3 track Keystroke Black USB Reader & 241C

Article number: KT-MS3-001AKU4
€269,50
Excl. tax

The pcSwipe Magnetic Stripe Card Reader for identification and enrollment is a cost-effective and efficient solution for customers wanting to leverage their existing base of magnetic stripe card-carrying personnel.

The rating of this product is 0 out of 5

(0)
In stock

Summary

The pcSwipe intelligent magnetic stripe card reader is a cost effective and efficient solution for customers who want to take advantage of their existing base of magnetic stripe card-carrying personnel.

The pcSwipe reader is compatible with the billions of magnetic stripe cards in circulation worldwide. As with all RF-ideas-products, is designed to pcSwipe identification and security needs of customers in many different applications and environments (see examples below). In addition to the solid construction and numerous installation options, the main features are bi-directional sweeping power and fast swipe speeds for maximum usability.

Free software, customers can configure their pcSwipe as needed. Options include the ability to track data from the locations on the map and custom programmability read keystrokes which are added before and after the data from the card. The plug-n-play functionality pcSwipe makes it an easy addition to your network, seamless integration with existing infrastructure.

The pcSwipe can be used as a stand-alone system or can be integrated with other software applications using the optional Software Developer Kit (SDK).

Applications

  • PC / LAN access or login
  • Visitor management
  • Employee identification / User Authorization
  • Single sign-on
  • Time and attendance
  • Form filler to existing software applications
  • PLC and embedded controllers
  • Fitness training or attending
  • Vending machines or point of sale

Features

Compatible with billions of cards worldwide

Plug-n-play installation

Fully programmable and customizable user defined fields

Error Handling

Beeper and LED

Simultaneously reads up to 3 tracks of information


Connectors and software interface:

The standard USB model (registration) directly connected to a USB port and can work with data as keystrokes or send. Optional Software Developer Kit (SDK) The RS-232 model connected to a PC serial COM port and sends data ASCII . The CDC model emulates a virtual serial device.

Compatibility

Compatible with Windows CE ®, Windows 2000 ®, Windows XP ®, Windows Vista ®, Macintosh ®, the Solaris ™ Operating System, Sun Ray ™ thin clients, and Linux. (Free configuration software requires Windows ® operating system.)


Versatile mounting options

Articulated cable, standard mounting holes and unobtrusive design allows the reader to be placed on the desktop, mounted on screens anywhere on time clocks and more installed.


Meets medical / healthcare HIPAA requirements

When used as a log-on reader.


Specifications

Desktop Dimensions: 3.674 "x 1.325" x 1.193 "(93.32 x 33.65 x 30.3 mm) Optional base Dimensions: 3.375" x 3.5 "x 0.5" (86 x 89 x 13 mm)

Desktop Weight: 4.6 oz. (136g) Base: 13 oz. (369g)

Media Thickness: 0.015 "(0.127 mm) to 0.038" (1.14 mm)

Media formats: ISO 7811, AAMVA, and other F2F formats

Slot Width: 0.040 "(1.0 mm)

Swipe speed: 3-60 inches per second, bi-directional

Power and Interface: USB: self-powered, RS-232 [DB9F] Model: 5V supplied by either PS / 2 or USB keyboard pass-through power tap

Port / Styles: USB, RS-232

Indicators: Tri-state LED, beeper

Operating temperature: 32 ° to 131 ° F (0 ° to 55 ° C)

Relative humidity: 5% to 95% relative humidity, non-condensing

Storage temperature: -22 ° to 158 ° F (-30 ° to 70 ° C)

Cable length: 6-foot articulated cable

Operational Life: 1,000,000 cycles minimum

Desktop and Base Unit Colour: Black



Warranty

Warranty: One year parts and labor




Optional Accessories Reference

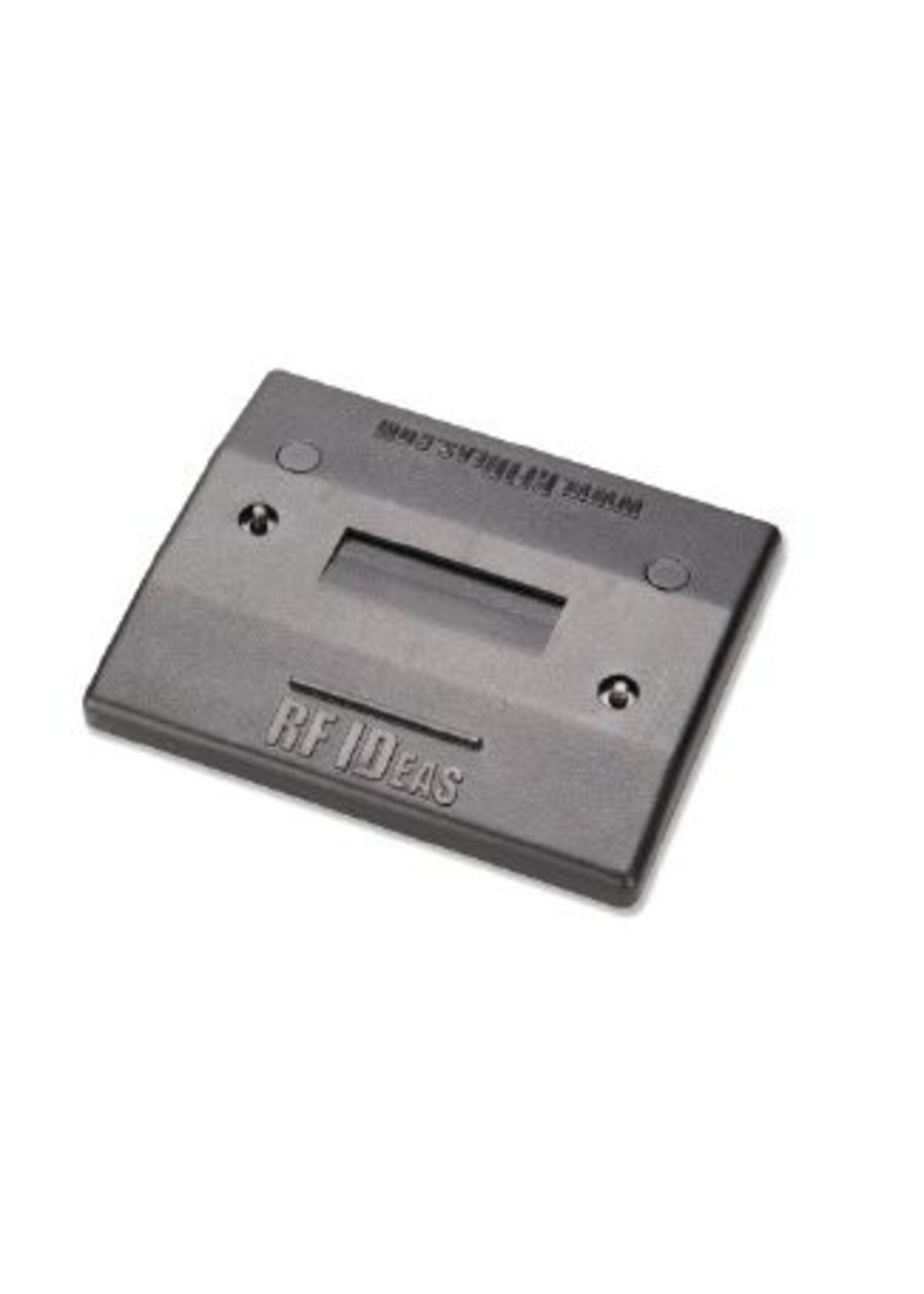

Magnetic Stripe Reader Base Accessory BKT-BASE



Ports / Styles: USB, RS-232

Desktop and Department Colors: Black

Product Brochure

https://cdn.webshopapp.com/shops/25475/files/9450247/pcswipe.pdf



56Mhz / Black / Enroll / Magstripe / Mifare / pcSwipe / PCSWIPE ENROLL / Reader / RF Ideas / RFID / track / USB
