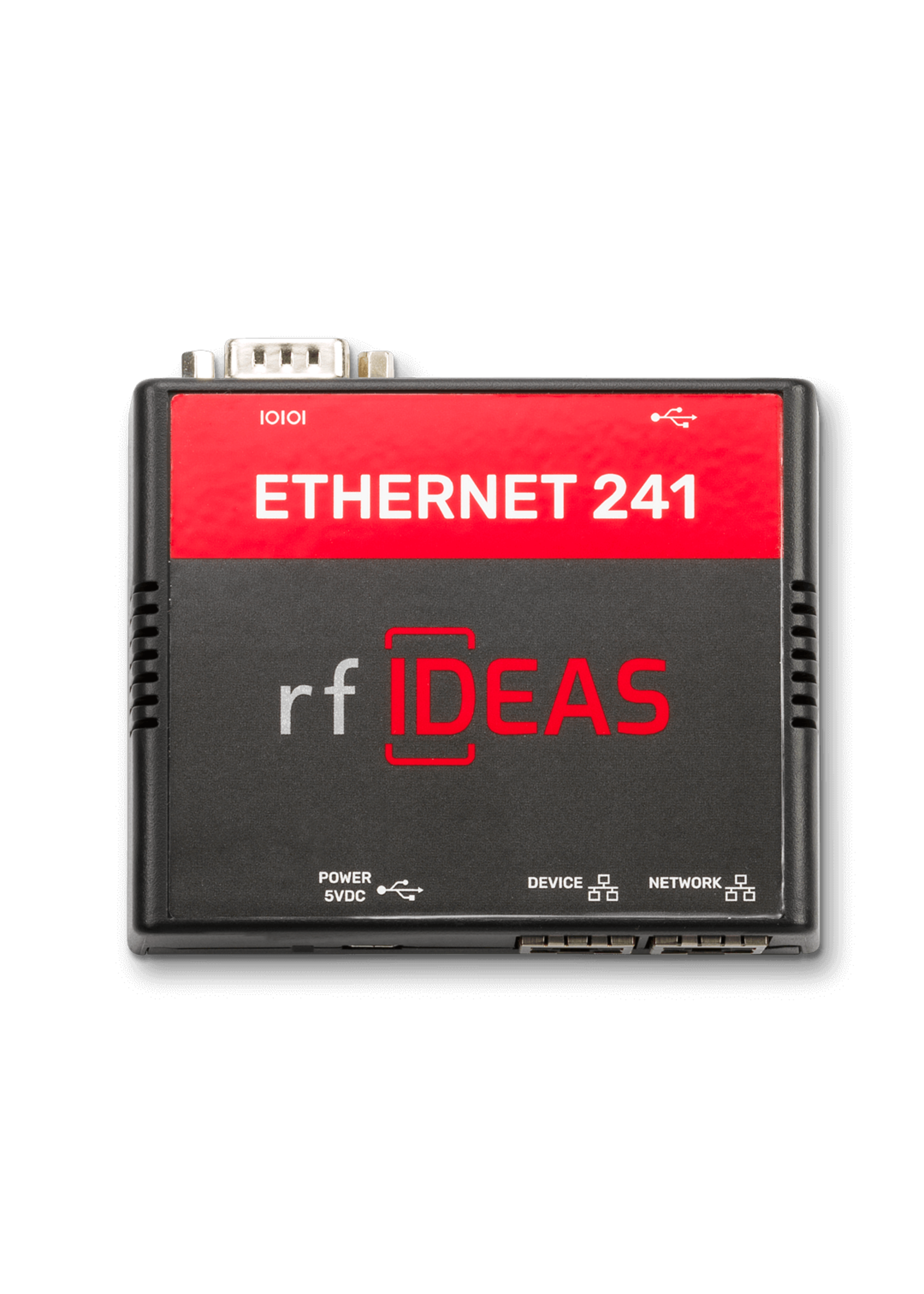

Ethernet 241™
Ethernet two port switch for secure printing
RF IDeas’ card readers are ideal for customers seeking to leverage their existing card systems with Multi-Function and Single-Function Printer capabilities. With some network applications, the addition of a network drop to accommodate a card reader for secure printing is impractical. Users may also be left desiring additional features, such as data encryption and standardized communication across different reader types. In these cases, the preferred solution is to utilize a device that provides two Ethernet ports, acting as a two port switch, that also provides the additional features for accessing card readers, eliminating the need for additional network drop installations and associated costs.
Utilizing Secure Printing features saves time and money throughout your operation.
The Ethernet 241 was designed to allow an RF IDeas card reader and an application device to simultaneously communicate via an Ethernet connection, using a single network drop. The Ethernet 241 acts as a two-port switch that provides a pass-thru Ethernet port for a printer and a second Ethernet port that is built into the device.
The 241 device has two Ethernet connectors designated as the Network port and Printer port. The Ethernet 241 provides one USB port, one RS-232 DB9 port and one 5 VDC port that is used to supply power to the unit via the supplied power adapter.
The USB and serial ports are intended for use by RF IDeas’ pcProx, pcSwipe and MFP24 readers. Both USB and serial ports operate independently and can support simultaneous card presentations.
*Ethernet 241 USB/Serial device only. The Ethernet 241 Serial, does not provide a USB port.
Network Addresses
The Ethernet 241 provides two, one for the device and one for the printer.
Address Assignment
DHCP or Static
Reader Configurability
Through pcProx Config Utility or ACP Commands
The Ethernet 241 connects to a network using autonegotiate (default), 10 Mbps half duplex, 10 Mbps full duplex, or 100 Mbps full duplex. The device has the ability to use DHCP or Static IP addresses and allows all Ethernet connections and ports to be configurable.
The printer device retains its own IP and MAC address. The Ethernet 241 will pass through all communication between the printer and the network untouched. Messages for the 241 device are not sent to the printer.
There are two reader ports — a serial port and a USB port. Either one (or both) can be used, allowing for various RF IDeas’ readers to be integrated. For configuration, the pcProx Config Utility can establish a tunnel to the pcProx readers through the Ethernet 241. In addition, automated scripts will allow ACP commands to be sent to the reader upon reader initialization or the reading of card data.
The Ethernet 241 can operate as a client or a server for transmitting card and reader data. In client mode SSL (Secure Socket Layer) can be optionally enabled for secure encryption of card data during transmission.
The Ethernet 241 Discovery Tool PC application allows for easy maintenance of multiple Ethernet 241 devices on a network.
Dimensions: 3.88 x 3.13 x 1in
Weight: 3.95 oz (112g)
Power Supply: 5 VDC 1.0A
Ports: (2) RJ 45; (1) USB; (1) RS-232 DB9; (1) Mini USB 5VDC power supply input. ---
(*Legacy Serial Only Model does not contain the (1) USB or (1) Mini-USB ports)
Indicator: LED for power condition and error faults
Moutning: Super Velcro tabs (included)
Certifications: FCC Certification, United States; CE Mark, Europe; C-TICK, Industry Canada
